Description
|
Features |
1.2 | Type No. |

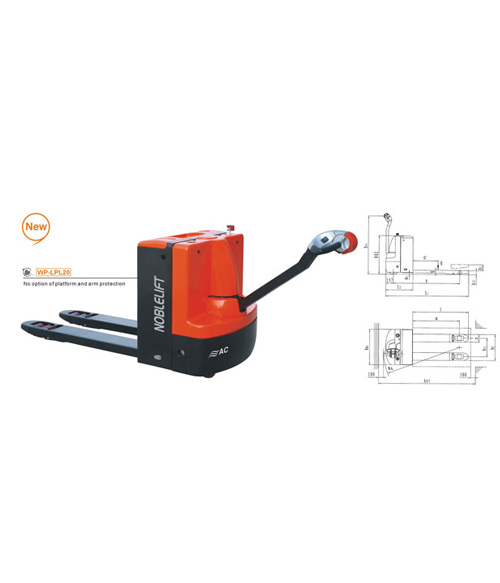

WP-LPL20 |
|
| 1.3 | Power (electric, diesel, gasoline, liquefied petroleum gas) |
Electric |
||
| 1.4 | Driving mode (hand, pedestrian, stand-on, sit-down, unit-pick) |
Pedestrian |
||
| 1.5 | Rated loading capacityQ |
kg |
2000 |
|
| 1.6 | Load centre distanceC |
mm |
600 |
|
| 1.8 | Front overhang distanceX |
mm |
970/1040 |
|
| 1.9 | TrackY |
mm |
1369/1439 |
|
|
Weight |
2.1 | Weight (with accumulator) |
kg |
508 |
| 2.2 | Axle load at full loadDrive side/load side |
kg |
1032/1476 |
|
| 2.3 | Axle load without loadingDrive side/load side |
kg |
400/108 |
|
|
Wheel |
3.1 |
Tires (rubber wheels, high-performance elastomer, polyurethane wheels)
|
polyurethane wheels |
|
| 3.2 | Tyre size, drive side |
mm |
Φ230×75 |
|
| 3.3 | Tyre size, load side |
mm |
Φ80×70/Φ80×93* |
|
| 3.4 | Dimension of steering wheel |
Φ100×40 |
||
| 3.5 | Wheel numbers (X=driving wheel) Drive side/load side |
1x +2/ 2/1x +2/ 4 |
||
| 3.6 | Wheel track (front)Drive side b10 |
mm |
495 |
|
| 3.7 | Wheel track (back)load side b11 |
mm |
380/525 |
|
|
Dimension |
4.4 | Lift heighth3 |
mm |
120 |
| 4.9 | Height of lever in middle positionh14 |
mm |
1213 |
|
| 4.15 | Height of fork when being loweredh13 |
mm |
85 |
|
| 4.19 | Overall lengthl1 |
mm |
1707/1777 |
|
| 4.20 | Length of truck bodyl2 |
mm |
557 |
|
| 4.21 | Width of truck bodyb1 |
mm |
730 |
|
| 4.22 | Fork dimensions/e/l |
mm |
60/160/1150(1220) |
|
| 4.25 | Lateral distance of forkb5 |
mm |
540/685 |
|
| 4.32 | Distance from wheel base centre to groundm2 |
mm |
25 |
|
| 4.34 | Right angle stacking aisle width, pallet 800X1200(1200 placed along fork)Ast** |
mm |
2233/2273 |
|
| 4.35 | Turning radiusWa |
mm |
1572/1642 |
|
|
Capability |
5.1 | Driving speedfull load/ no load |
km/h |
4.7 / 5.1 |
| 5.2 | Lifting speedfull load/ no load |
mm/s |
18 / 22 |
|
| 5.3 | Lowering speed full load/ no load |
mm/s |
35 / 40 |
|
| 5.8 | Climbing capacity full load/no load |
% |
10/16 |
|
| 5.10 | Parking brake |
Electromagnetic brake |
||
|
Motor |
6.1 | Drive motor power kw |
kW |
1.4(AC) |
| 6.2 | Lift motor power kw |
kW |
0.8 |
|
| 6.3 | Accumulator, U.K. BS standard, no |
3VBS |
||
| 6.4 | Voltage of accumulator, capacity (discharge rate5 hours) |
V/Ah |
24 / 210 |
|
| 6.5 | Accumulator weight (+/-5%) |
kg |
185 |
|
| Battery dimension, length X width X height |
mm |
645 / 196 / 570 |
||
|
Others |
8.1 | Driving and control methods |
FET control |
|
| 8.4 | Noise heard by the driver |
dB(A) |
<70 |
|
| Turning angle |
° |
180 |
